How fast does it open?

As fast as 1.3 seconds on Access Pro and Parking Pro. Longer arms take 4–8 seconds, and Toll HighSpeed 2 opens in 0.3 seconds.

Will it work with my keypad, card reader, remote, plate camera or ticket machine?

Yes. Magnetic controllers accept standard dry-contact inputs, and MGC Pro adds Ethernet, radio and RS485. We list the exact modules for your access device on the quote.

Yes, in almost every case. Vehicle loops keep the arm up while a car is under it and close it behind. The 2-channel loop detector is built in.

What happens in a power outage?

Add a battery backup option to keep the gate cycling, or choose a solar model that never depends on grid power.

Can people walk under it?

No. Barrier arms are for vehicles, so give people a separate walkway. A boom skirt or grille deters walking under the arm.

What if a car hits the arm?

Breakaway options let the arm swing free instead of snapping, so it's quick to reset.

What does UL 325 certified mean?

It means the operator was tested to the US gate-operator safety standard. Access, Access Pro, Parking Pro, Toll and Access XL2/XXL are certified to UL 325 by TÜV SÜD, an NRTL; for other models, UL 325 status is confirmed on your quote.

How long does it last?

Most models are built for 10 million cycles on a maintenance-free direct drive. XL2 and XXL are rated for 2 million.

What's the lead time?

Lead time is confirmed on your quote.

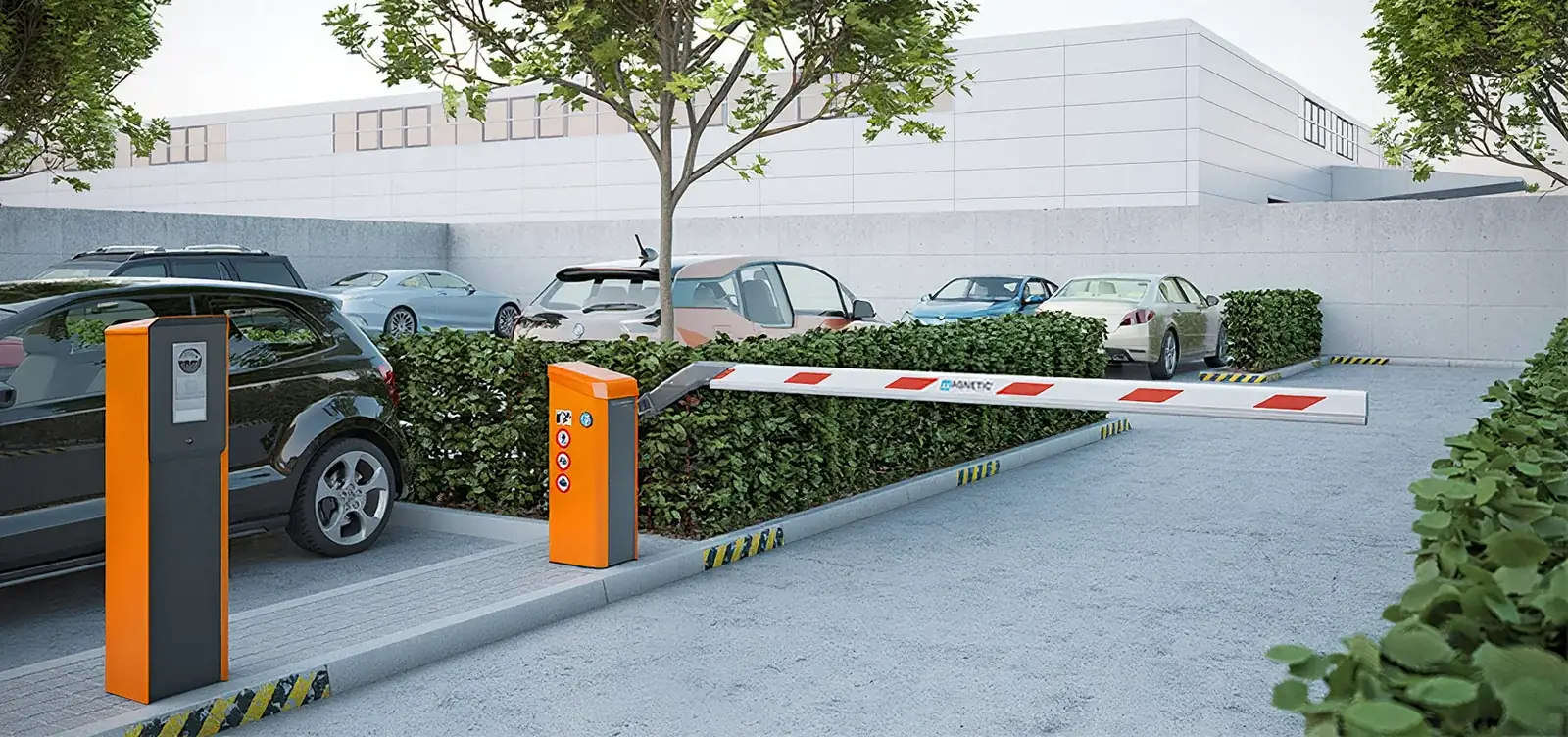

Magnetic Access barrier gate and ticket terminal at a landscaped parking lot entrance

Magnetic · FAAC Group

Barrier Gates.

Up in 1.3 seconds. Built for 10 million cycles.

German-engineered Magnetic barrier gates for parking garages, gated communities and industrial sites — specified, quoted and supported by Coyote Traffic.

Find my gate 855-526-9683

1.3 s
opening
10M-cycle
drive
120 V
or solar
UL 325*
certified

*Certified to UL 325 by TÜV SÜD, an NRTL: Access, Access Pro, Parking Pro, Toll, Access XL2/XXL. Other models: UL 325 status confirmed on your quote.

Gate finder/ 01

Two questions. One gate.

01Where's it going?

02How wide is the lane?

Your match

Magnetic Parking Pro

Opens in 1.3 s. Folding arm fits low ceilings.

11.5 ft · opens in 1.3 s · Certified to UL 325

Build & quote Details

Coyote Traffic is trusted by

Logistics yards, military gates, theme parks, airports and apartment communities.

The lineup/ 02

A gate for every lane.

Pick by where it's going. Every gate is quoted with the loops, photo eye and controller modules it needs.

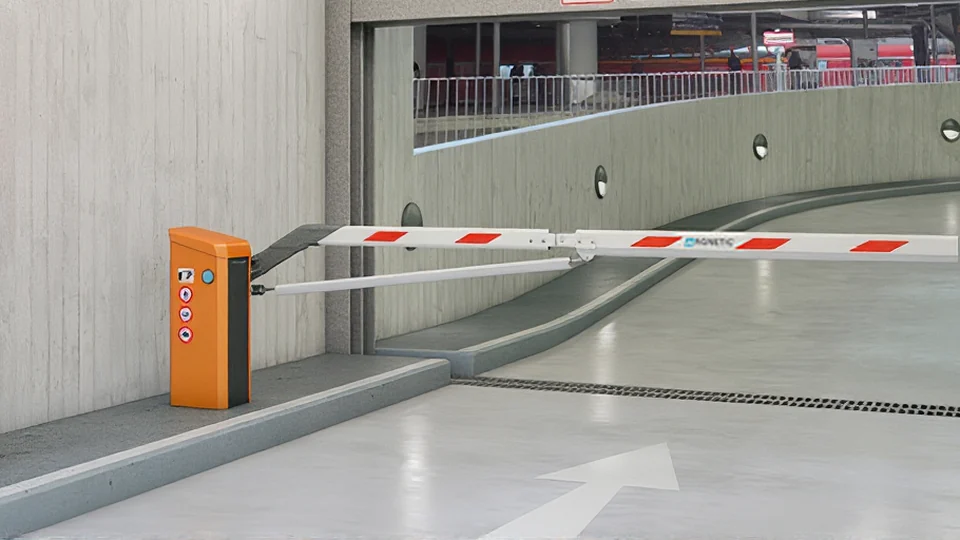

Garages & lots
Parking Gates
- Opens in 1.3 s
- Folding arm for low ceilings
- Lanes up to 11.5 ft
Build & quote Details
HOAs & campuses
Access Control Gates
- Lanes 11.5–20 ft
- 10M-cycle drive
- Keypad, card, remote or camera
Build & quote Details

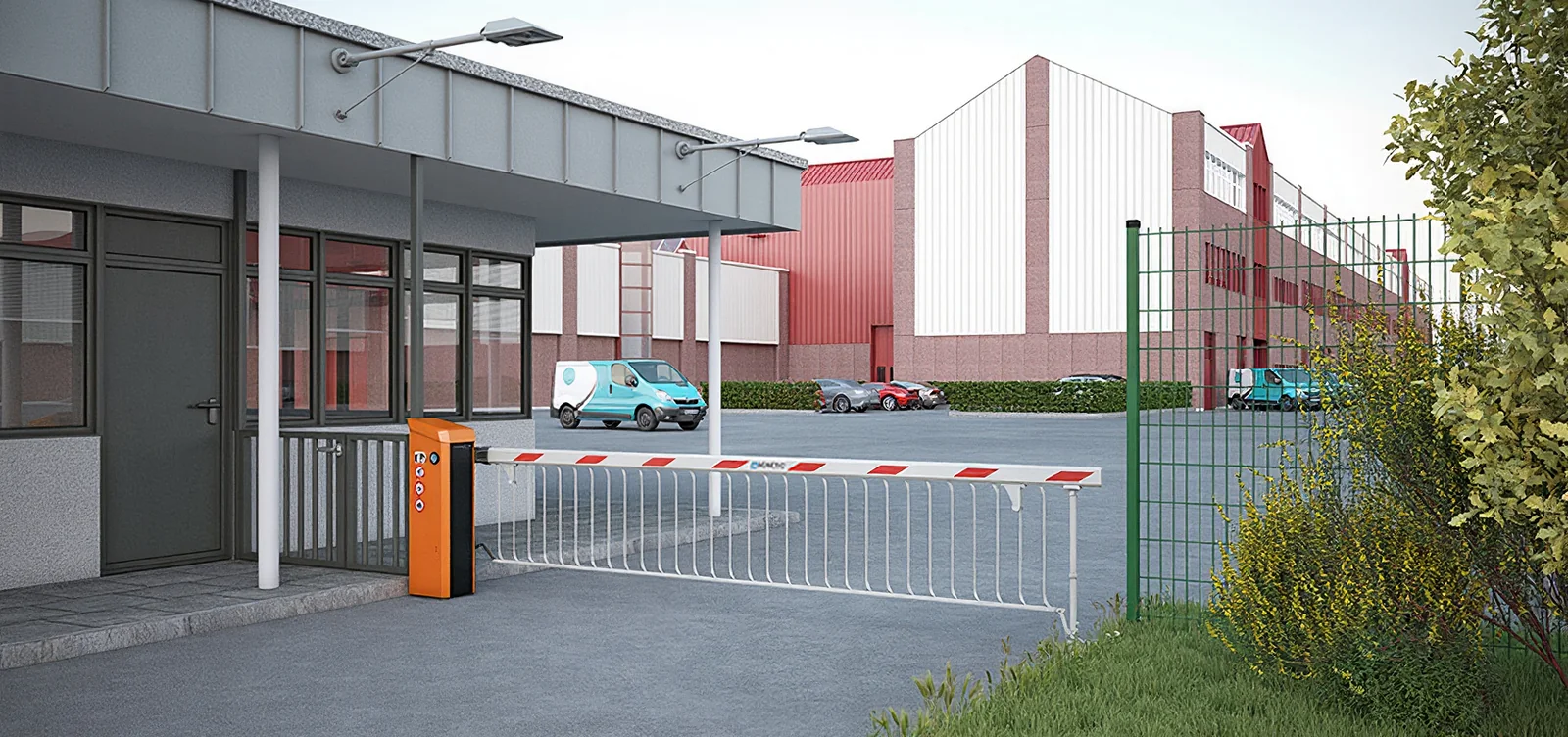

Security Gates with Skirt
- Boom skirt / grille
- Climb-over protection 4.3 or 5.9 ft
- Lanes up to 20 ft
Build & quote Details

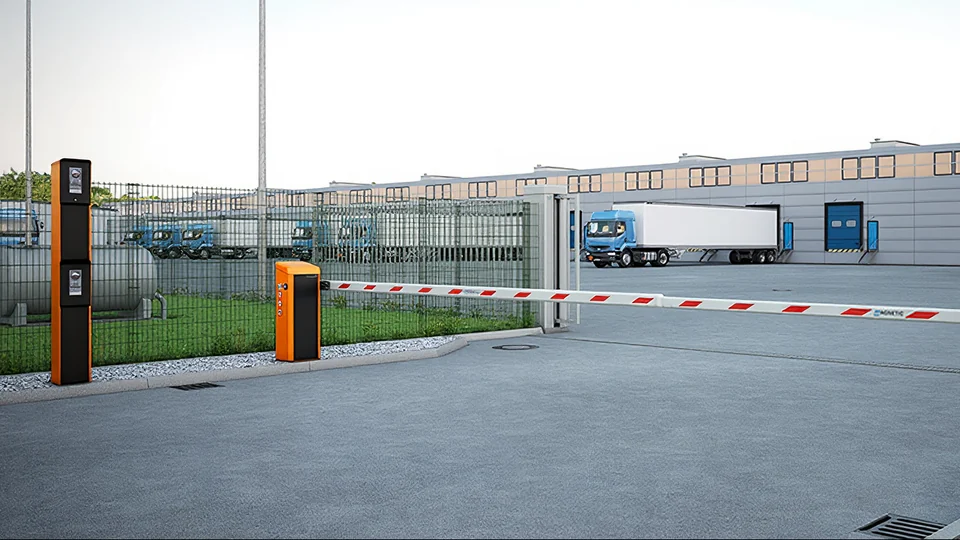

Wide-Lane & Truck
- Arms up to 33 ft
- Support post or pendulum
- Freight, ports & multi-lane
Build & quote Details

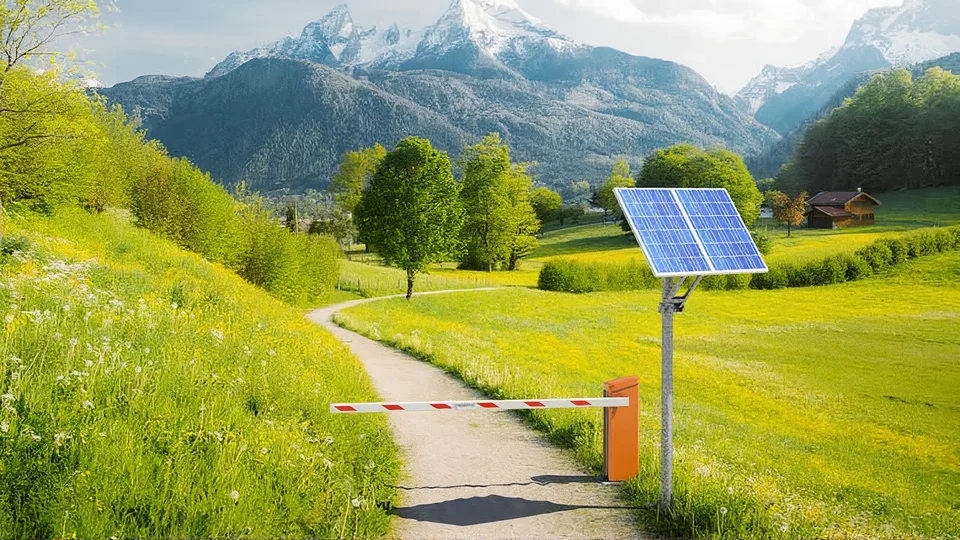

Off-grid
Solar Barrier Gates
- No power at the gate
- ~500 cycles per day
- 24 V DC · 5 to 122 °F
Build & quote Details

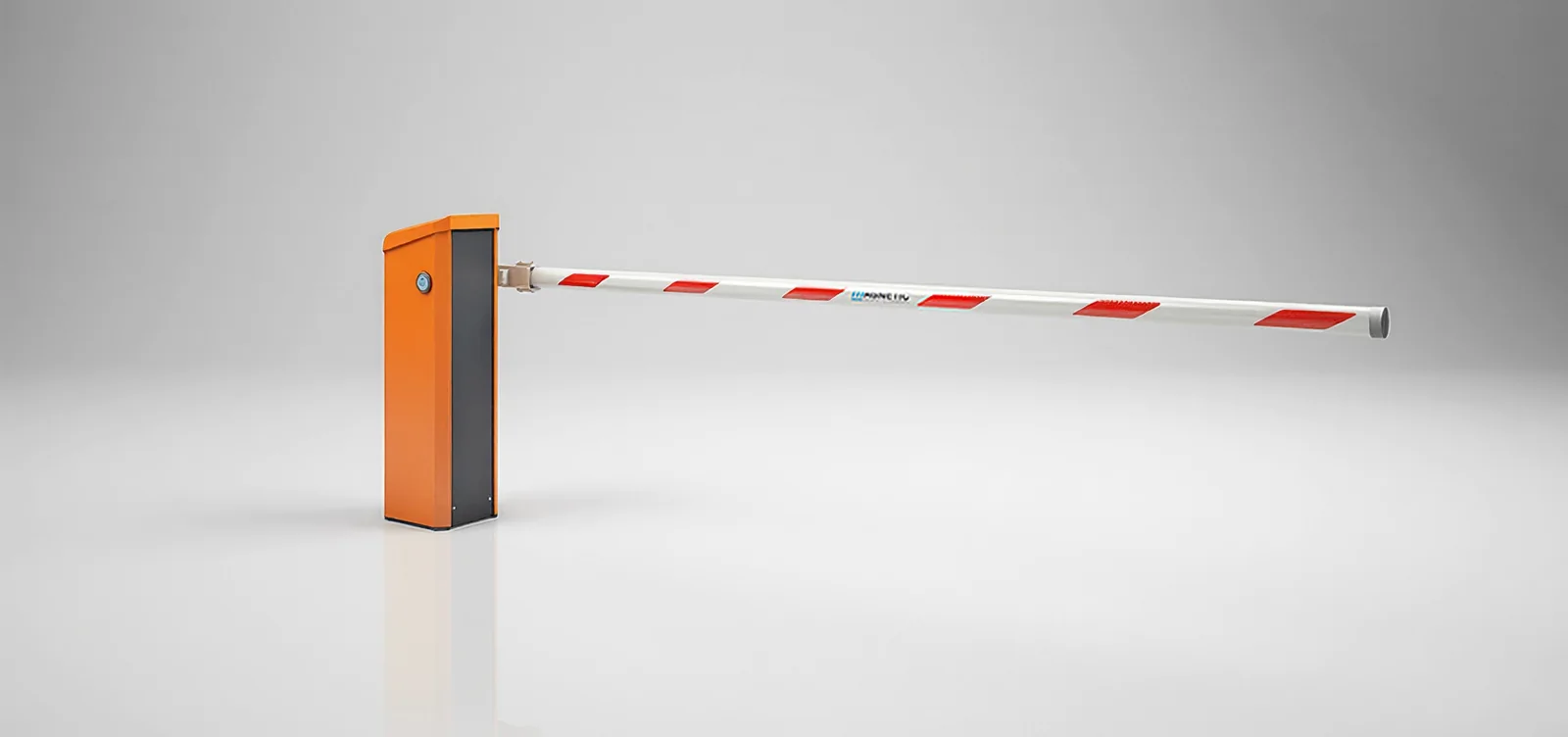

Toll & High-Speed Lanes
- Opens in 1.3 s → 0.3 s
- Toll HighSpeed 2
- Lanes about 10 ft
Reference: Ohio Turnpike: 116 Toll Pro2 lanes
Talk to a specialist

116
Ohio Turnpike
Toll Pro2 lanes on the turnpike.
40
Port Canaveral, FL
Parking Pro gates in service since 2014.
700
Frankfurt Airport
300 Access + 400 Parking Pro.
SameDay
Itemized quote
Same-business-day itemized quote from your account manager.

FAAC Group company · Red Dot and German Design award-winning design

Magnetic barrier gates are designed and built in Germany by Magnetic Autocontrol, a FAAC Group company. Coyote Traffic is an authorized partner.

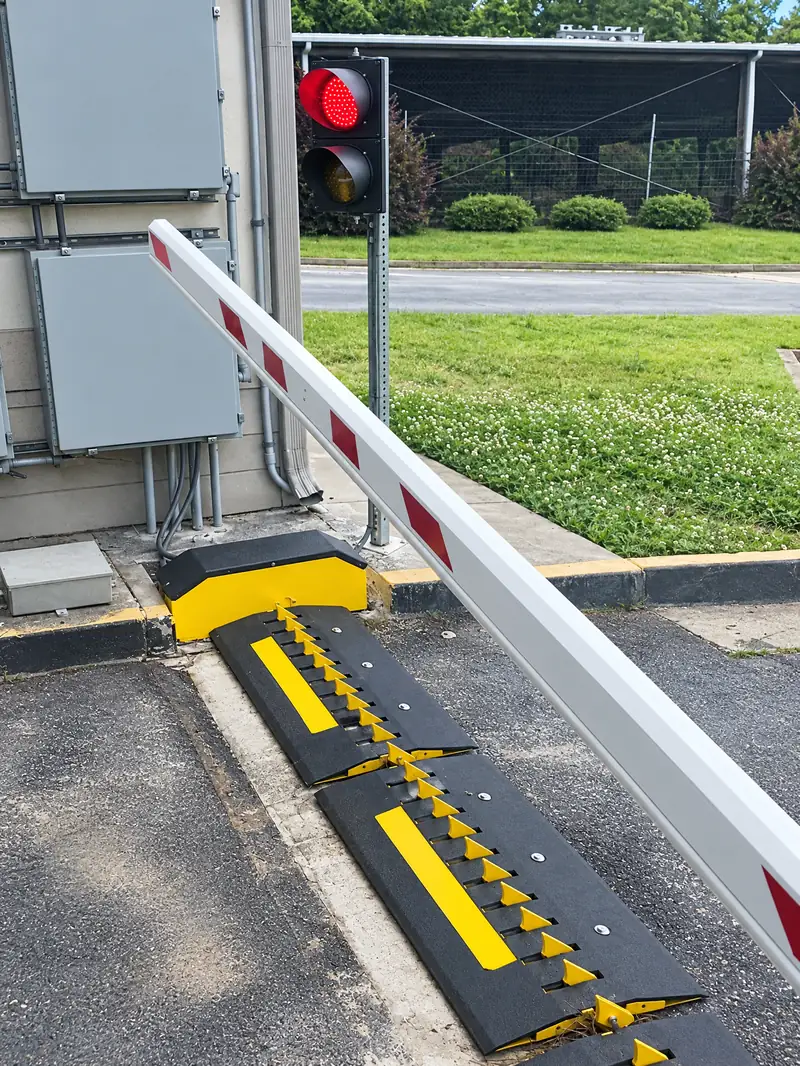

Barrier arm beside motorized traffic spikes with teeth raised and the red signal lit

Pair with one-way spikes/ 03

Gate + Spikes Exit Systems

A gate controls who gets in. One-way spikes make sure nobody drives out the wrong way. We spec and quote both together.

Quote gate + spikes All traffic spikes →

Quoted together by one account manager.

Compare/ 04

Every model, side by side.

Specs from Magnetic. Your quote confirms the exact model, arm and options for your lane.

Swipe to see every column →

Model	Max lane	Open time	Design life	Best for	UL 325
Access	11.5 ft	2.2 s	10 million	Community & business entrances	Certified
Access Pro	11.5 ft	1.3 s	10 million	Busy entrances where speed matters	Certified
Access-L	16.4 ft	4 s	10 million	Wider community & business lanes	Confirmed on quote
Access Pro-L	up to 20 ft	4 s	10 million	Wide entrances up to 20 ft	Confirmed on quote
Access Pro-H	up to 20 ft	4 s	10 million	Security-critical entrances	Confirmed on quote
Access Pro-H Solar	up to 20 ft	4 s	~500 cycles per day	Remote sites with no power	Confirmed on quote
Access XL2	28 ft	6 s	2 million	Freight, ports & multi-lane	Certified
Access XXL	33 ft	8 s	2 million	Freight, ports & multi-lane	Certified
Parking Pro	11.5 ft	1.3 s	10 million	Garages & high-traffic lots	Certified
Toll family	about 10 ft	1.3 s → 0.3 s (Toll HighSpeed 2)	10 million	Toll plazas & high-speed lanes	Certified

Safety/ 05

UL 325, simply.

UL 325 is the US safety standard for gate operators. It sorts gates into four classes by where they're used.

Certified to UL 325 by TÜV SÜD, an NRTL: Access, Access Pro, Parking Pro, Toll, Access XL2/XXL. Other models: UL 325 status confirmed on your quote.

Class I: Homes and small residential groups (up to 4 units).
Class II: Commercial and public sites — HOAs, apartments, hotels, garages, retail.
Class III: Industrial sites not open to the public.
Class IV: Guarded, restricted sites such as airports and prisons.

Every Coyote quote includes the two independent entrapment-protection devices UL 325 requires (vehicle loops + photo eye).
Barrier arms are for vehicles only. Pedestrians need a separate walkway.

Installation/ 06

What installation
involves.

Four things at the lane. We spec each one on your quote so your installer or electrician knows exactly what's needed.

Power
Power at the gate
Standard 120 V to the operator — or a solar model where there's no power.
Loops
Saw-cut loops
Vehicle loops cut into the pavement tell the gate a car is there.
Pad
Concrete pad
A small concrete pad anchors the operator housing.
Access
Access device
Keypad, card reader, remote, plate camera or ticket machine.

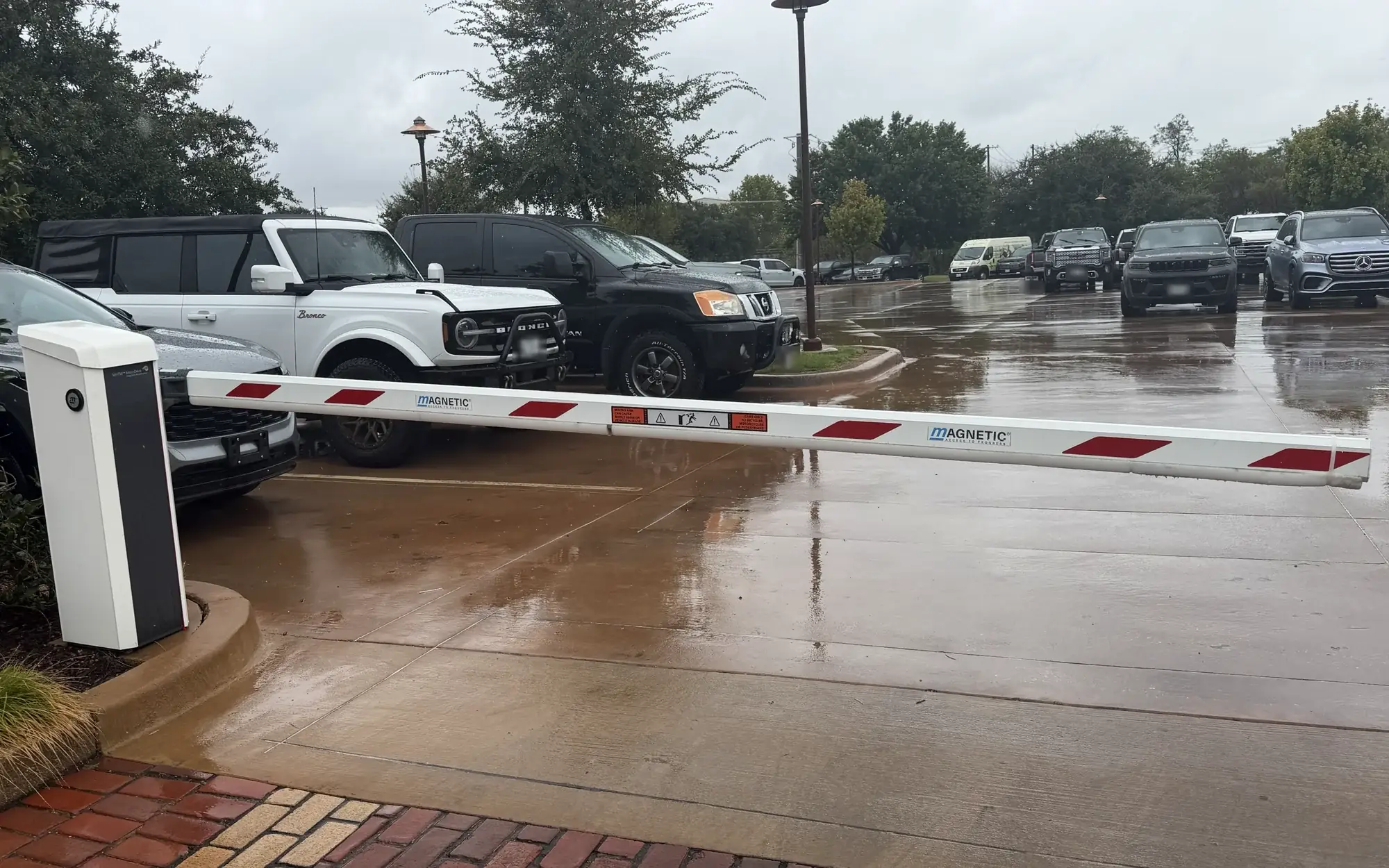

Magnetic barrier gate with a red-and-white striped arm closing a lane at a Texas parking lot

FAQ/ 08

Barrier gate questions, answered.

Didn't see yours? Ask Joseph — he specs these every day.

855-526-9683

It depends on lane width, opening speed and options like LED arms, skirts or solar. Tell us about the lane and your account manager sends an itemized quote the same business day.

Coyote Traffic support specialist reviewing a custom traffic spike drawing at his laptop

Real people. Real expertise.

Talk to
someone who
actually knows.

Watch: The Expert Difference0:32More on our YouTube channel →

Questions? Talk to our team. Tell us about the lane, the traffic and how people open the gate, and we'll spec the gate, arm and loops to match.

Call 855-526-9683 Find my gate

Live U.S. support
Spec help & drawings
