Coyote Traffic
Barrier Gates
Toll & High-Speed barrier gate at a industrial & truck lanes site

Magnetic · Toll

Toll & High-Speed

Certified to UL 325 · opens in 1.3 s → 0.3 s

Engineered per lane

Toll and high-speed lanes are specified per project: lane speed, controller interface and arm length.

Talk to a specialist855-526-9683

Opening time

1.3 s → 0.3 s

Max lane width (model)

about 10 ft

Drive life

10M cycles

Electrical & controls
Input
85–264 VAC · 50/60 Hz
Max power
See datasheet
Rated current
1.0 A · 120 V, 60 Hz
Enclosure
IP54
Temperature
−22 to 131 °F
Duty cycle
100%
I/O
8 in · 6 relay + 4 digital out
Loop detector
Built-in 2-channel
Controller
See datasheet

What's in the box

  • Magnetic Toll operator
  • Round boom
  • 2 vehicle loops
  • Photo eye
Magnetic barrier gate with a red-and-white striped arm closing a lane at a Texas parking lot
CERTIFIED TO
UL 325 · TÜV SÜD

UL 325 in play: Class III

  • Industrial and limited-access sites not open to the general public
  • Two independent entrapment devices required: vehicle loops plus photo eye. Both are included.
  • Pedestrians need a separate walkway, never the vehicle lane
Read the full requirementTÜV SÜD Certificate of Compliance U8 109774 0005, page one

Certified to UL 325

Certificate of Compliance U8 109774 0005 · TÜV SÜD America (OSHA-recognized NRTL) · UL 325:2017 · CAN/CSA-C22.2 No. 247

View certificate

Plan the site. Build it right.

Site & install

See drawing
Housing W × D × H
10 ft arm
Below support threshold
120 V
Standard circuit (85–264 VAC)
See datasheet
Max power
Magnetic concrete foundation and anchor pattern for Toll & High-Speed

Foundation plan · CAD bundle

Concrete pad & anchor pattern

Magnetic housing dimension drawing for Toll & High-Speed

Dimension drawing · PDF

Dimensions

Toll & High-Speed at a industrial & truck lanes site

Your installer needs

  • Concrete pad per the foundation plan
  • 120 V, 15 A circuit in conduit to the pad
  • Two saw-cut vehicle loops (loop wire by installer)
  • A dry-contact open signal from your keypad, reader or pay station
  • A separate pedestrian walkway (UL 325)

Dimensions and electrical data from Magnetic Autocontrol's published datasheet. Verify against the drawings in your installer kit.

Documents for your submittal

Spec sheetCoyote · Download PDFDatasheetMagnetic · Download PDFCAD drawingsPDF/DWG/DXF/STEP · Download ZIP · 627 KBInstall manualEmailed by your account managerUL 325 certificateDownload PDF · 419 KB

Built for your installer

  • Spec sheet, datasheet, CAD and install manual are downloadable above and linked in your order confirmation
  • Loop layout and wiring questions answered by phone, 855-526-9683
  • Need an installer? Ask us — we can point you to one in your area

Options on request

Battery backupHeaterKey-operated switchHood lightEthernet / RS485 / CAN modulesGSM moduleSecond detector moduleSafety light barrierReduced operating angle

Compare systems

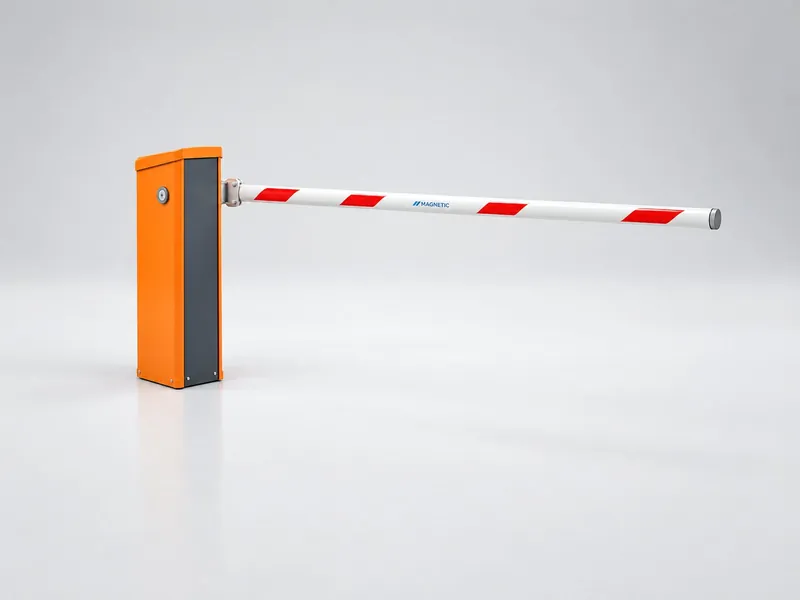

Toll & High-Speed studio photoParking Garage Lane studio photoParking Lot Lane studio photoCommunity Entrance studio photo
Toll & High-SpeedParking Garage LaneParking Lot LaneCommunity Entrance
ModelTollParking ProParking ProAccess
Opening time1.3 s → 0.3 s1.3 s1.3 s2.2 s
Max lane width (model)about 10 ft11.5 ft11.5 ft11.5 ft
ArmRoundFoldingStraight / FoldingStraight
Lane price + $295 freightPer lane$6,850$6,320$6,190
Talk to a specialistViewViewView
Barrier arm beside motorized traffic spikes with teeth raised and the red signal lit

Pair with one-way spikes

Gate + Spikes Exit Systems

A gate controls who gets in. One-way spikes make sure nobody drives out the wrong way. We spec and quote both together.

Quote gate + spikes All traffic spikes →

Quoted together by one account manager.
