Arm
12 ft straight
Opens in
4 s
Lane width
12 ft
Duty cycle
~500 cycles per day
Electrical & controls
Input
24 V DC · solar + batteries
Enclosure
IP54
Temperature
5 to 122 °F
Duty cycle
100%
I/O
8 in · 6 relay + 4 digital out
Loop detector
Built-in 2-channel
Controller
See datasheet

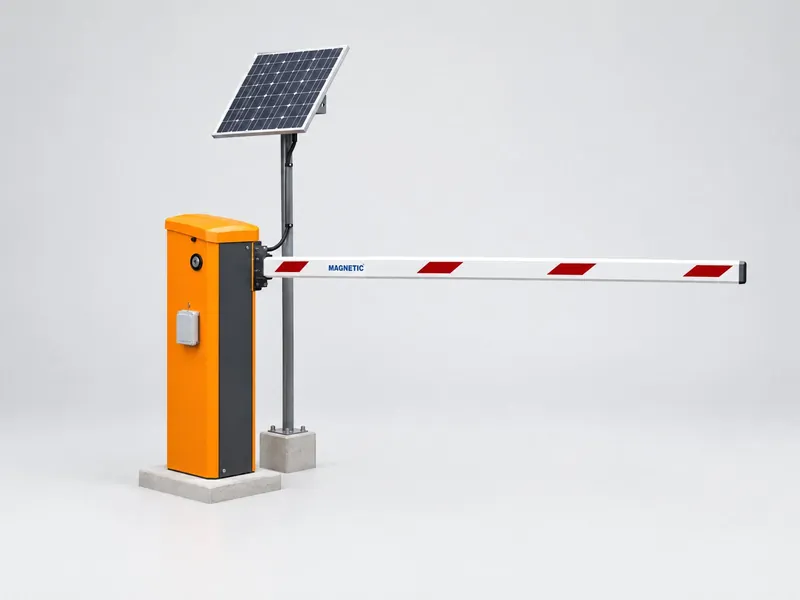

Access Pro-H Solar · Magnetic

Solar Lane

4.9· 137 verified reviews

From$5,989

operator + arm · + $295 freight per system · residential liftgate +$95

With loops, photo eye & detector $7,469

Email me this quoteTalk to an account manager855-526-9683

Your priced quote PDF is emailed right away. No obligation. POs accepted.

Arm length— 12 ft

One arm length offered for this system.

Match the arm to your lane width. Support post required — add from accessories

Arm style— Straight

Straight — the arm style offered on this system.

Colour— Orange
Safety & detection — recommended — 1 of 1

Required for a UL 325 compliant install. We pre-select them — uncheck only if your site already has them.

Next-level add-ons — None selected

Checked items are added to this system's price and come with it to cart and quote.

Your system

Access Pro-H Solar operator + 12 ft straight arm · orange · right-hand

  • + Safety & detection kit (2 loops, photo eye, detector) · $1,480

Total

$7,469

Get a quote / PO

Secure checkout · Visa, Mastercard, Amex, Apple Pay, Google Pay, Link, bank transfer

  • UL 325 status confirmed on your quote
  • Ships nationwide, $295 freight per system
  • POs accepted · tax-exempt OK
  • Real people answer — 855-526-9683

Your configuration

What's included

Operator

  • Magnetic Access Pro-H Solar operator
  • 24 V DC with solar panel and batteries

Arm

  • Straight boom

Vehicle loops

  • 2 vehicle loops
  • Loop detector

Photo eye

  • Photo eye

Side by side

Why this over Parking Garage Lane or Parking Lot Lane

Safety standard

UL 325 in play: Class III

  • Industrial and limited-access sites not open to the general public
  • Two independent entrapment devices required: vehicle loops plus photo eye. Both are pre-selected on every system.
  • Pedestrians need a separate walkway, never the vehicle lane
Read the full requirement

UL 325 status confirmed on your quote

This model is not on the current TÜV SÜD certificate; we confirm the applicable certification for your configuration on the quote.

Plan the site. Build it right.

Site & install

12.4 × 14.2 × 36 in
Housing W × D × H
88 lb
Operator weight
24 V DC
Solar + batteries
100%
Duty cycle
Magnetic concrete foundation and anchor pattern for Solar Lane

Foundation plan · CAD bundle

Concrete pad & anchor pattern

Magnetic housing dimension drawing for Solar Lane

Dimension drawing · PDF

Dimensions

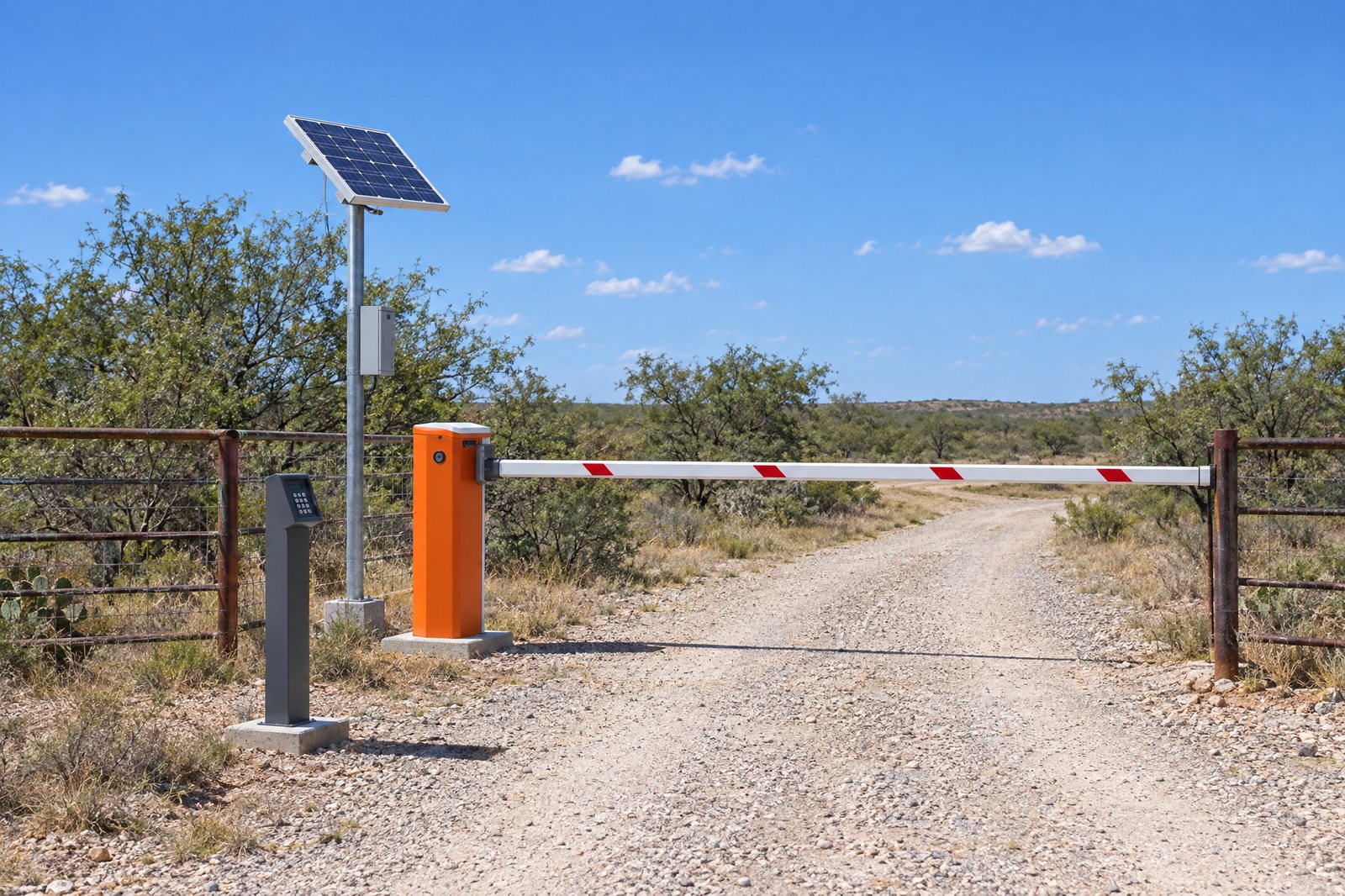

Solar Lane at a solar site site

Your installer needs

  • Concrete pad per the foundation plan
  • Solar panel + batteries; 24 V DC supply to the pad
  • Two saw-cut vehicle loops (loop wire by installer)
  • A dry-contact open signal from your keypad, reader or pay station
  • A separate pedestrian walkway (UL 325)

Dimensions and electrical data from Magnetic Autocontrol's published datasheet. Verify against the drawings in your installer kit.

Installation

Built for your installer

  • Spec sheet, datasheet, CAD and install manual are downloadable above and linked in your order confirmation
  • Loop layout and wiring questions answered by phone, 855-526-9683
  • Need an installer? Ask us — we can point you to one in your area

Ask us

Options on request

Lineup

Compare systems

Solar Lane studio photoParking Garage Lane studio photoParking Lot Lane studio photoCommunity Entrance studio photo
Solar LaneParking Garage LaneParking Lot LaneCommunity Entrance
ModelAccess Pro-H SolarParking ProParking ProAccess
Opening time4 s1.3 s1.3 s2.2 s
Max lane width (model)up to 20 ft11.5 ft11.5 ft11.5 ft
ArmStraightFoldingStraightStraight
From (operator + arm) + $295 freight$5,989$4,839$4,279$4,169
With loops & photo eye$7,469$6,319$5,759$5,649
ViewViewView
