Coyote Traffic
Barrier Gates

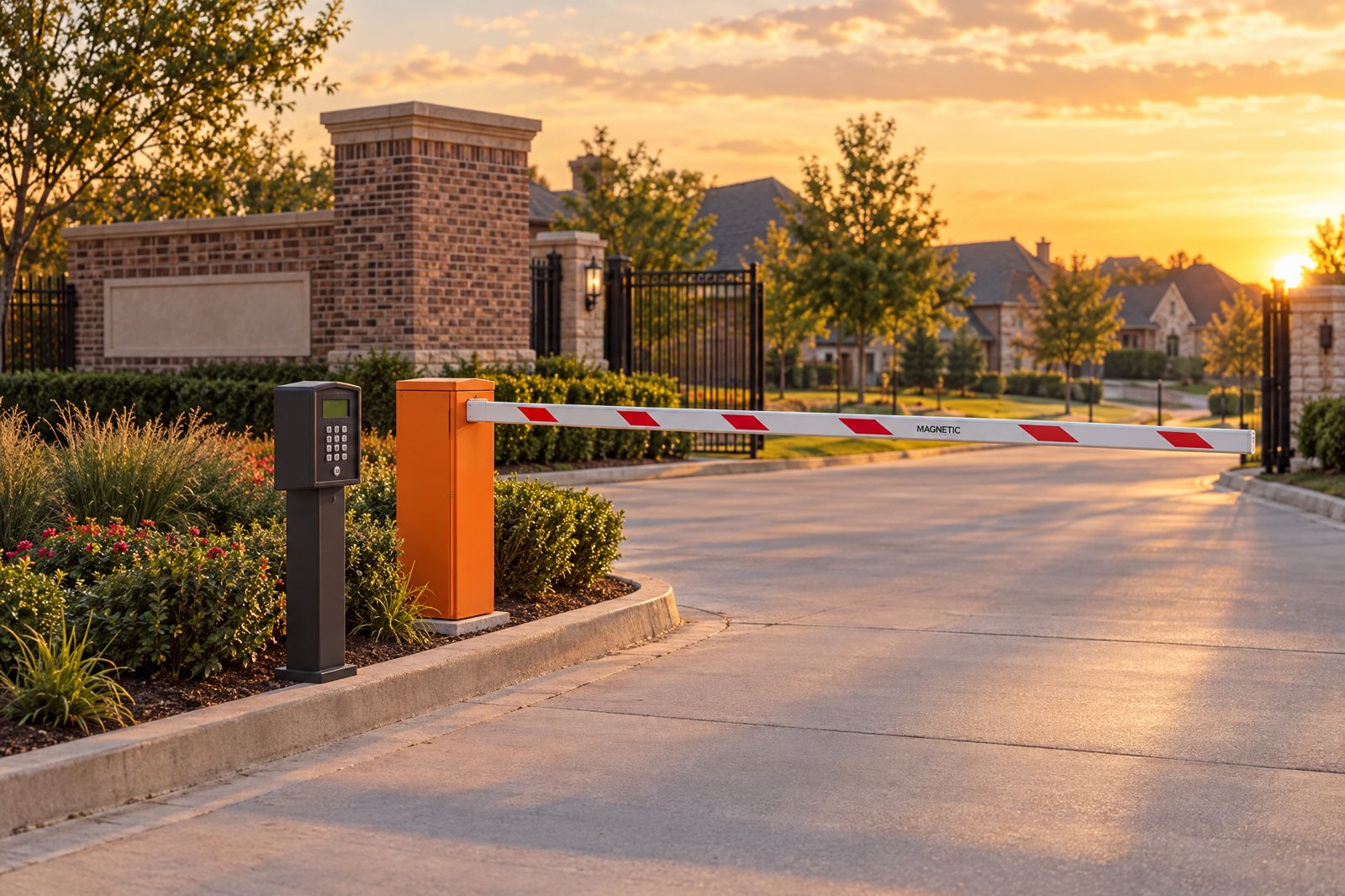

Community Entrance barrier gate at a hoa & communities site

Magnetic · Access

Community Entrance

Certified to UL 325 · opens in 2.2 s

$6,190

+ $295 LTL freight · residential liftgate +$95

In stock

Includes what others charge extra for: both vehicle loops, the photo eye and detector.

PackageComplete lane
Lane widths offered10 ft

Arm — Straight

Your system

$6,190

Email me a quote
Recommended add-ons · added to your system

POs accepted · Tax-exempt at checkout
Secure checkout · Visa, Mastercard, Amex, Apple Pay, PayPal

Opening time

2.2 s

Max lane width (model)

11.5 ft

Drive life

10M cycles

Electrical & controls
Input
85–264 VAC · 50/60 Hz
Max power
25 W
Rated current
1.0 A · 120 V, 60 Hz
Enclosure
IP54
Temperature
−22 to 131 °F
Duty cycle
100%
I/O
8 in · 6 relay + 4 digital out
Loop detector
Built-in 2-channel
Controller
MGC

What's in the box

  • Magnetic Access operator
  • Straight striped boom
  • 2 vehicle loops
  • Photo eye
Magnetic barrier gate with a red-and-white striped arm closing a lane at a Texas parking lot
CERTIFIED TO
UL 325 · TÜV SÜD

UL 325 in play: Class II

  • Public and HOA sites, five or more units
  • Two independent entrapment devices required: vehicle loops plus photo eye. Both are included.
  • Pedestrians need a separate walkway, never the vehicle lane
Read the full requirementTÜV SÜD Certificate of Compliance U8 109774 0005, page one

Certified to UL 325

Certificate of Compliance U8 109774 0005 · TÜV SÜD America (OSHA-recognized NRTL) · UL 325:2017 · CAN/CSA-C22.2 No. 247

View certificate

Plan the site. Build it right.

Site & install

12.4 × 14.2 × 36 in
Housing W × D × H
88 lb
Operator weight
120 V
Standard circuit (85–264 VAC)
25 W
Max power
Magnetic concrete foundation and anchor pattern for Community Entrance

Foundation plan · CAD bundle

Concrete pad & anchor pattern

Magnetic housing dimension drawing for Community Entrance

Dimension drawing · PDF

Dimensions

Community Entrance at a hoa & communities site

Your installer needs

  • Concrete pad per the foundation plan
  • 120 V, 15 A circuit in conduit to the pad
  • Two saw-cut vehicle loops (loop wire by installer)
  • A dry-contact open signal from your keypad, reader or pay station
  • A separate pedestrian walkway (UL 325)

Dimensions and electrical data from Magnetic Autocontrol's published datasheet. Verify against the drawings in your installer kit.

Documents for your submittal

Spec sheetCoyote · Download PDFDatasheetMagnetic · Download PDFCAD drawingsPDF/DWG/DXF/STEP · Download ZIP · 11 MBInstall manualDownload PDF · 5 MBUL 325 certificateDownload PDF · 419 KB

Built for your installer

  • Spec sheet, datasheet, CAD and install manual are downloadable above and linked in your order confirmation
  • Loop layout and wiring questions answered by phone, 855-526-9683
  • Need an installer? Ask us — we can point you to one in your area

More accessories

Breakaway flange on a Magnetic operator

Breakaway flange

$278

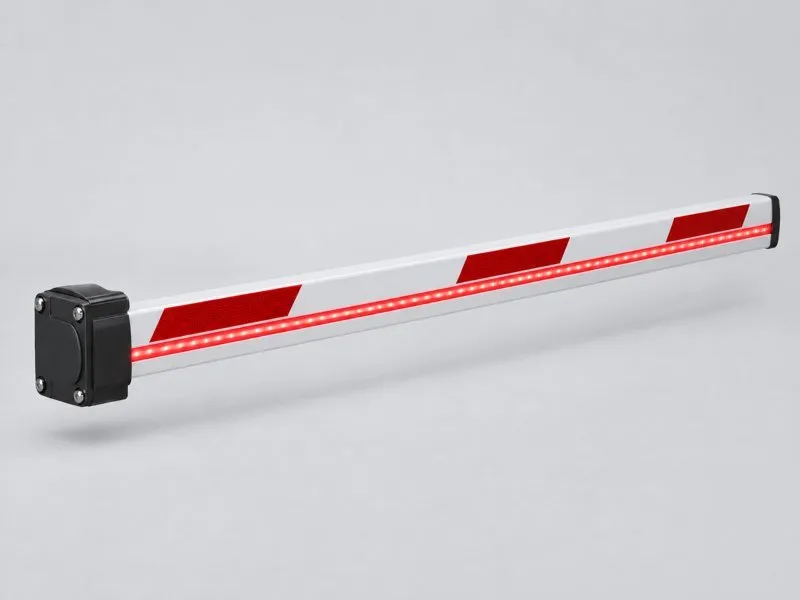

LED red/green barrier boom with lit segments

LED red/green boom, up to 12 ft

$1,130

Boom lock and support post for a barrier arm

Boom lock post

$1,143

Radar vehicle detection sensor

Radar vehicle detection

$452

Options on request

Battery backupHeaterKey-operated switchHood lightEthernet / RS485 / CAN modulesGSM moduleSecond detector moduleSafety light barrierReduced operating angle

Compare systems

Community Entrance studio photoAccess Control Lane studio photoParking Garage Lane studio photoParking Lot Lane studio photo
Community EntranceAccess Control LaneParking Garage LaneParking Lot Lane
ModelAccessAccess Pro-LParking ProParking Pro
Opening time2.2 s4 s1.3 s1.3 s
Max lane width (model)11.5 ftup to 20 ft11.5 ft11.5 ft
ArmStraightStraightFoldingStraight / Folding
Lane price + $295 freight$6,190$7,160$6,850$6,320
ViewViewView
Barrier arm beside motorized traffic spikes with teeth raised and the red signal lit

Pair with one-way spikes

Gate + Spikes Exit Systems

A gate controls who gets in. One-way spikes make sure nobody drives out the wrong way. We spec and quote both together.

Quote gate + spikes All traffic spikes →

Quoted together by one account manager.
