Barrier Gates

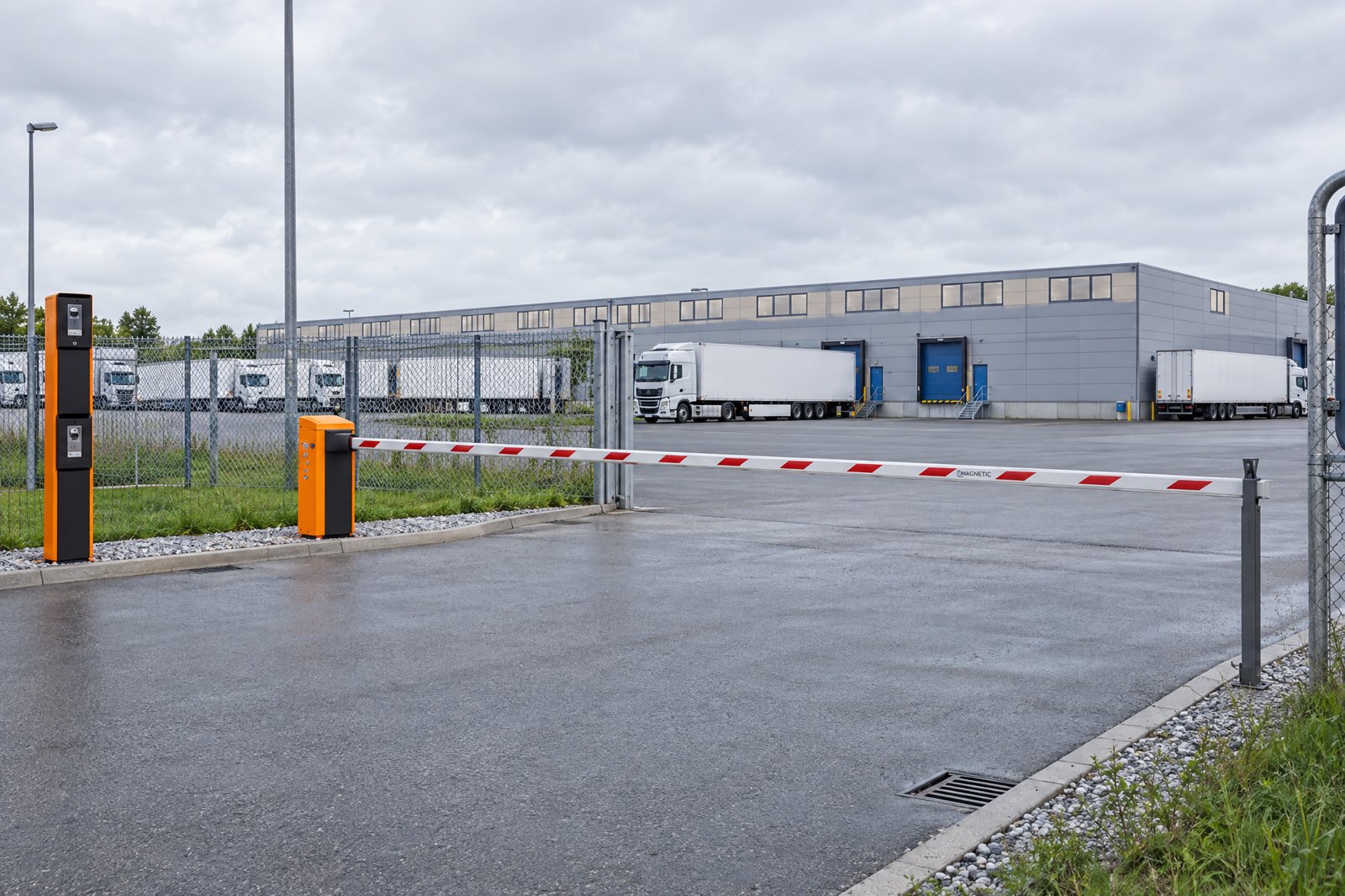

Wide / Truck Lane barrier gate at a industrial & truck lanes site

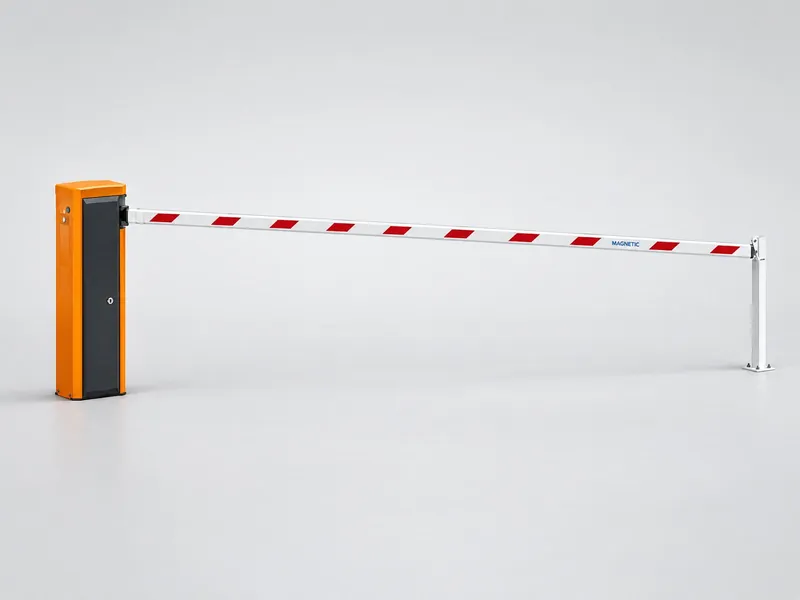

Magnetic · Access XXL

Wide / Truck Lane

Certified to UL 325 · opens in 8 s

$17,500

+ $295 LTL freight · residential liftgate +$95

In stock

Includes what others charge extra for: both vehicle loops, the photo eye and detector.

PackageComplete lane
Lane widths offered28 ft

Includes support post (required for arms over 11.5 ft)

Arm — Straight

Your system

$17,500

Email me a quote
Recommended add-ons · added to your system

POs accepted · Tax-exempt at checkout
Secure checkout · Visa, Mastercard, Amex, Apple Pay, PayPal

Opening time

8 s

Max lane width (model)

33 ft

Drive life

2M cycles

Electrical & controls
Input
85–264 VAC · 50/60 Hz
Max power
See datasheet
Enclosure
IP54
Temperature
−22 to 131 °F
Duty cycle
100%
I/O
8 in · 6 relay + 4 digital out
Loop detector
Built-in 2-channel
Controller
See datasheet

What's in the box

  • Magnetic Access XXL operator
  • Extra-long boom
  • Support post
  • 2 vehicle loops
  • Photo eye
Magnetic barrier gate with a red-and-white striped arm closing a lane at a Texas parking lot
CERTIFIED TO
UL 325 · TÜV SÜD

UL 325 in play: Class III

  • Industrial and limited-access sites not open to the general public
  • Two independent entrapment devices required: vehicle loops plus photo eye. Both are included.
  • Pedestrians need a separate walkway, never the vehicle lane
Read the full requirementTÜV SÜD Certificate of Compliance U8 109774 0005, page one

Certified to UL 325

Certificate of Compliance U8 109774 0005 · TÜV SÜD America (OSHA-recognized NRTL) · UL 325:2017 · CAN/CSA-C22.2 No. 247

View certificate

Plan the site. Build it right.

Site & install

See drawing
Housing W × D × H
Support post
Included with complete lane
120 V
Standard circuit (85–264 VAC)
See datasheet
Max power
Magnetic concrete foundation and anchor pattern for Wide / Truck Lane

Foundation plan · CAD bundle

Concrete pad & anchor pattern

Magnetic housing dimension drawing for Wide / Truck Lane

Dimension drawing · PDF

Dimensions

Wide / Truck Lane at a industrial & truck lanes site

Your installer needs

  • Concrete pad per the foundation plan
  • 120 V, 15 A circuit in conduit to the pad
  • Two saw-cut vehicle loops (loop wire by installer)
  • A dry-contact open signal from your keypad, reader or pay station
  • A separate pedestrian walkway (UL 325)

Dimensions and electrical data from Magnetic Autocontrol's published datasheet. Verify against the drawings in your installer kit.

Documents for your submittal

Spec sheetCoyote · Download PDFDatasheetMagnetic · Download PDFCAD drawingsPDF/DWG/DXF/STEP · Download ZIP · 3 MBInstall manualEmailed by your account managerUL 325 certificateDownload PDF · 419 KB

Built for your installer

  • Spec sheet, datasheet, CAD and install manual are downloadable above and linked in your order confirmation
  • Loop layout and wiring questions answered by phone, 855-526-9683
  • Need an installer? Ask us — we can point you to one in your area

More accessories

Breakaway flange on a Magnetic operator

Breakaway flange

$278

Coil of saw-cut vehicle loop wire with sealant

Additional vehicle loop

$246

RF receiver board with two remote openers

RF receiver (remote openers)

$356

Options on request

Battery backupHeaterKey-operated switchHood lightEthernet / RS485 / CAN modulesGSM moduleSecond detector moduleSafety light barrierReduced operating angle

Compare systems

Wide / Truck Lane studio photoParking Garage Lane studio photoParking Lot Lane studio photoCommunity Entrance studio photo
Wide / Truck LaneParking Garage LaneParking Lot LaneCommunity Entrance
ModelAccess XXLParking ProParking ProAccess
Opening time8 s1.3 s1.3 s2.2 s
Max lane width (model)33 ft11.5 ft11.5 ft11.5 ft
ArmStraightFoldingStraight / FoldingStraight
Lane price + $295 freight$17,500$6,850$6,320$6,190
ViewViewView
Barrier arm beside motorized traffic spikes with teeth raised and the red signal lit

Pair with one-way spikes

Gate + Spikes Exit Systems

A gate controls who gets in. One-way spikes make sure nobody drives out the wrong way. We spec and quote both together.

Quote gate + spikes All traffic spikes →
