Which model fits my lane?

Pick by lane width: Access or Access Pro to 11.5 ft, Access-L to 16.4 ft, Access Pro-L to 20 ft, and XL2 or XXL for 28 or 33 ft.

How does the solar gate hold up?

Access Pro-H Solar runs on 24 V DC with a panel and batteries, handles about 500 cycles a day and is rated 5 to 122 °F.

Will it work with my keypad, card reader, remote, plate camera or ticket machine?

Yes. Magnetic controllers accept standard dry-contact inputs, and MGC Pro adds Ethernet, radio and RS485. We list the exact modules for your access device on the quote.

Can people walk under it?

No. Barrier arms are for vehicles, so give people a separate walkway. A boom skirt or grille deters walking under the arm.

What happens in a power outage?

Add a battery backup option to keep the gate cycling, or choose a solar model that never depends on grid power.

Yes, in almost every case. Vehicle loops keep the arm up while a car is under it and close it behind. The 2-channel loop detector is built in.

What does UL 325 certified mean?

It means the operator was tested to the US gate-operator safety standard. Access, Access Pro, Parking Pro, Toll and Access XL2/XXL are certified to UL 325 by TÜV SÜD, an NRTL; for other models, UL 325 status is confirmed on your quote.

What's the lead time?

Lead time is confirmed on your quote.

Up to 33 ft lanes
Grid or solar
Same-day itemized quote

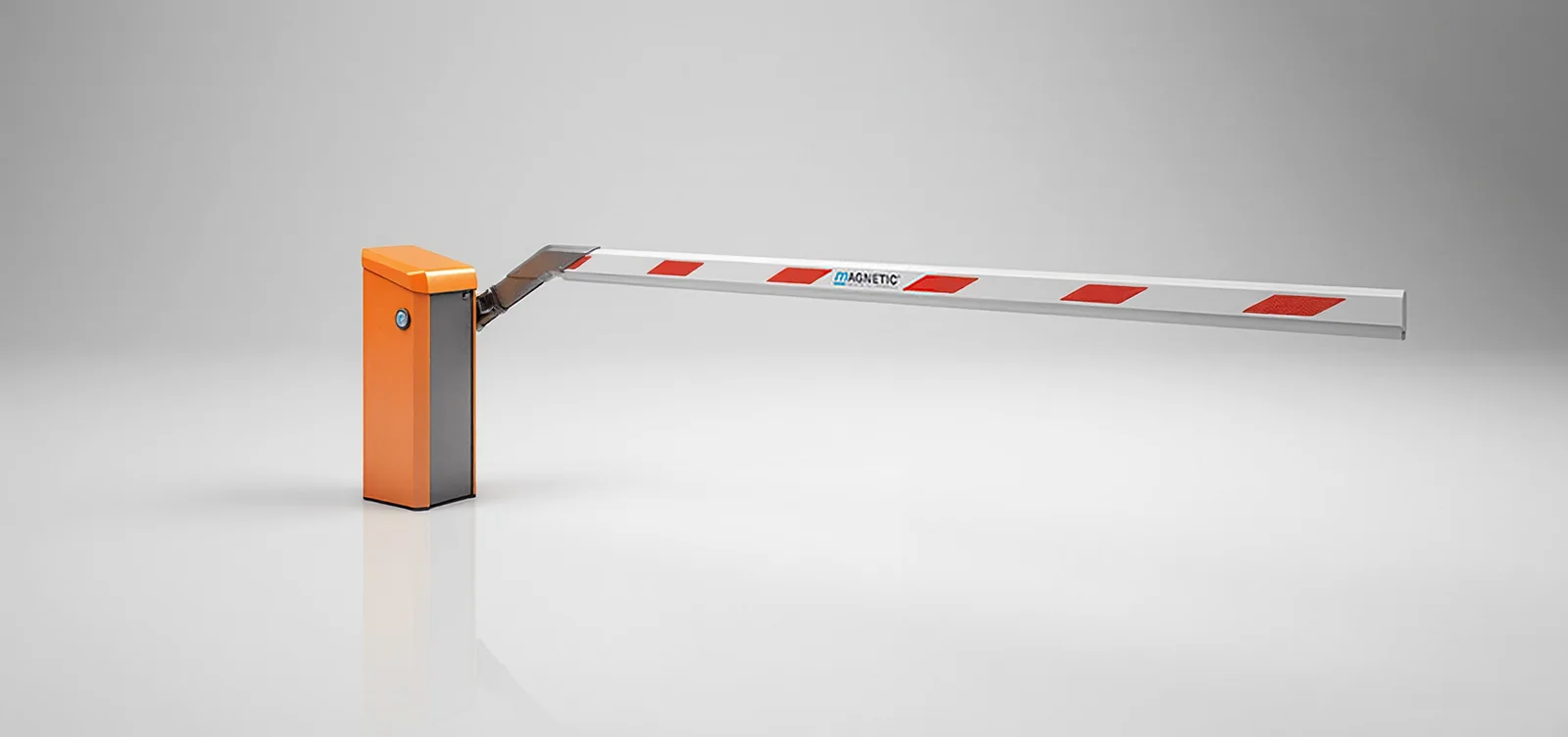

Magnetic Access Pro-L barrier gate with long striped boom

Magnetic barrier gate across a hotel parking entrance in Texas

Magnetic Access barrier gate and ticket terminal at a landscaped parking lot entrance

Access Pro-L

Access Pro-LShownLong boom · up to 20 ft

Magnetic · Access Pro-L

Access Control Barrier Gates

From 11-ft community entrances to 33-ft truck lanes — on grid or solar.

20 ft
Max lane width
4 s
Opening time
10M
Cycle design life

UL 325 status confirmed on your quote

Manufacturer warranty included — terms on your quote.

Coyote Traffic is trusted by

Logistics yards, military gates, theme parks, airports and apartment communities.

Your Bill of Materials/ 02

What's in your Bill of Materials.

Updates as you build. Your account manager itemizes every line on the quote.

01Magnetic Access Pro-L operatorRuns on standard 120 V
02Barrier armStraight boom sized to a 20 ft lane
032 vehicle loopsDetector built into the operator
04Photo eyeSecond entrapment-protection device for UL 325
05Controller modulesAs needed for your access-control device

116
Ohio Turnpike
Toll Pro2 lanes on the turnpike.
40
Port Canaveral, FL
Parking Pro gates in service since 2014.
700
Frankfurt Airport
300 Access + 400 Parking Pro.
SameDay
Itemized quote
Same-business-day itemized quote from your account manager.

FAAC Group company · Red Dot and German Design award-winning design

Magnetic barrier gates are designed and built in Germany by Magnetic Autocontrol, a FAAC Group company. Coyote Traffic is an authorized partner.

Built for/ 03

Every kind of
entrance.

From an 11-ft community gate to a 33-ft truck lane, one family of operators.

Most requested01HOAs & gated communitiesQuiet, 10-million-cycle drive for daily resident traffic.Build & quote →
02Corporate campusesCard readers, remotes and plate cameras.Build & quote →
03Industrial & fleet yardsSkirted Pro-H for security-critical gates.Build & quote →
04Ports & freightXL2 and XXL arms span 28 and 33 ft.Build & quote →
05Remote sitesSolar model for gates with no power.Build & quote →

Specifications/ 04

Access Pro-L specs.

Updates with the model you pick above.

Model: Magnetic Access Pro-L
Max lane width: up to 20 ft
Opening time: 4 s
Design life: 10 million
Controller: MGC Pro
UL 325: UL 325 status confirmed on your quote
Duty cycle: 100%
Power input: 85–264 VAC (runs on standard 120 V)
Drive: MHTM™ direct drive — maintenance-free, quiet
Enclosure: IP54
Operating temperature: −22 to 131 °F
Vehicle detection: Built-in 2-channel loop detector
Safety input: Photo eye / safety scanner
Design awards: Red Dot and German Design awards
Warranty: Manufacturer warranty included — terms on your quote

Compare/ 05

The Access family.

Specs from Magnetic. Your quote confirms the exact model, arm and options for your lane.

Swipe to see every column →

Model	Max lane	Open time	Design life	Best for	UL 325
Access	11.5 ft	2.2 s	10 million	Community & business entrances	Certified
Access Pro	11.5 ft	1.3 s	10 million	Busy entrances where speed matters	Certified
Access-L	16.4 ft	4 s	10 million	Wider community & business lanes	Confirmed on quote
Access Pro-LSelected	up to 20 ft	4 s	10 million	Wide entrances up to 20 ft	Confirmed on quote
Access Pro-H	up to 20 ft	4 s	10 million	Security-critical entrances	Confirmed on quote
Access Pro-H Solar	up to 20 ft	4 s	~500 cycles per day	Remote sites with no power	Confirmed on quote
Access XL2	28 ft	6 s	2 million	Freight, ports & multi-lane	Certified
Access XXL	33 ft	8 s	2 million	Freight, ports & multi-lane	Certified

Barrier arm beside motorized traffic spikes with teeth raised and the red signal lit

Pair with one-way spikes/ 06

Gate + Spikes Exit Systems

A gate controls who gets in. One-way spikes make sure nobody drives out the wrong way. We spec and quote both together.

Quote gate + spikes All traffic spikes →

Quoted together by one account manager.

FAQ/ 07

Access gate questions.

Didn't see yours? Ask Joseph — he specs these every day.

855-526-9683

It depends on lane width, opening speed and options like LED arms, skirts or solar. Tell us about the lane and your account manager sends an itemized quote the same business day.

Running a garage or busy lot? See Parking Gates →

Coyote Traffic support specialist reviewing a custom traffic spike drawing at his laptop

Real people. Real expertise.

Talk to
someone who
actually knows.

Watch: The Expert Difference0:32More on our YouTube channel →

Questions? Talk to our team. Tell us about the lane, the traffic and how people open the gate, and we'll spec the gate, arm and loops to match.

Call 855-526-9683 All barrier gates

Live U.S. support
Spec help & drawings
TURNKEY INSTALL
