23 in suits everyday foot traffic. The 36-in wide lane fits carts and luggage and counts as your accessible lane.

35-in or 71-in glass?

35-in glass guides people through a lobby. 71-in glass makes jumping over much harder for higher-security floors.

mWing is the glass-wing lobby gate. mFlow is the Momentum passageway built for airports and transit; both move about 40 people a minute.

What happens when the power goes out?

It depends on the model. mTripod's arm drops, mWing's glass wings swing free and mSwing opens for free passage; MPT full-height turnstiles are set to free exit or locked when you order.

Which card readers work with them?

Most common card, QR, PIN and face readers. Magnetic turnstiles work with common access-control systems, and the mPost reader column holds the reader beside each lane.

What's the lead time?

Lead time is confirmed on your quote.

Do you have US certifications?

Ask your account manager — we confirm compliance for your project before you order. Magnetic turnstiles are built to EN 17352 safety standards (EN ISO 13849 PL d, CE).

Lobby
~40 people/min
Same-day itemized quote

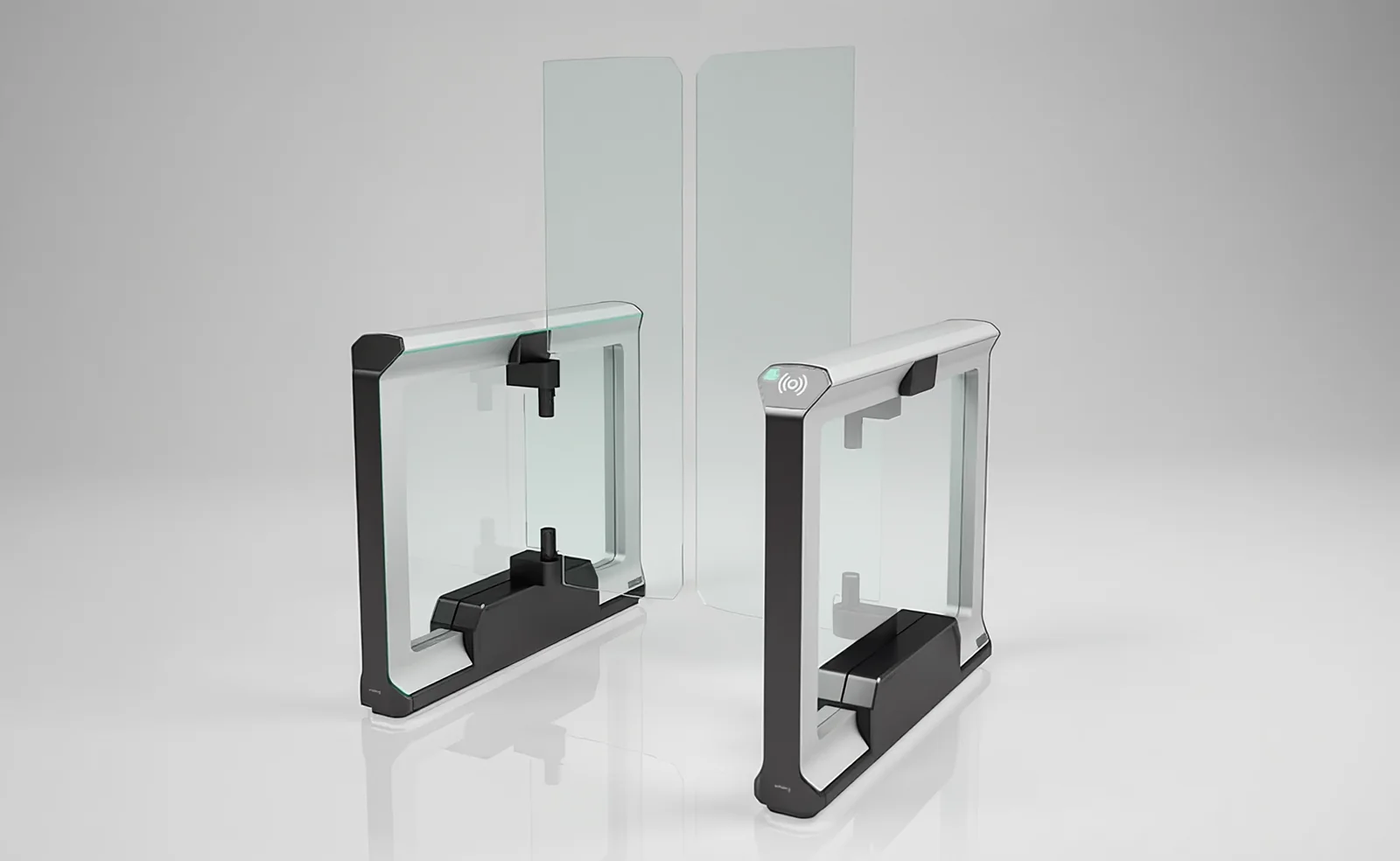

Magnetic mWing optical speed gate with glass wings

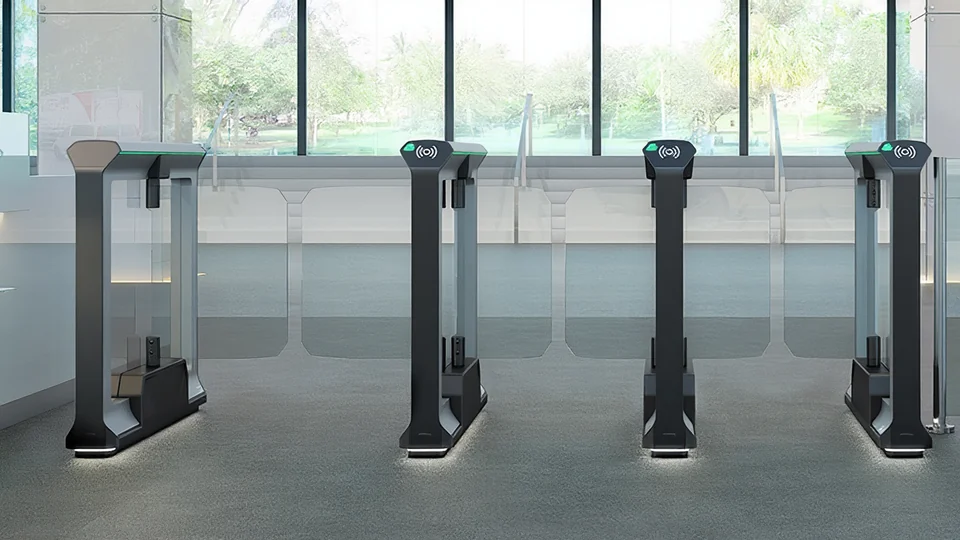

Magnetic optical speed gates with glass wings in a building lobby

mWing

mWingShownmWing · glass wings

Magnetic · mWing

Optical Turnstiles & Speed Gates

Glass-wing speed gates for lobbies — open in 0.6–1 s, move about 40 people a minute and swing free on power loss.

~40
People per minute
0.6–1 s
Opening time
Free
Swing on power loss

Built to EN 17352 safety standards · Every quote includes an accessible lane

Build your lanes About 30 seconds

01GatemWing

02Lane width23 in

03Glass height35 in

04FinishStandard

05Lanes2

Add a 36-in wide lane (counts as your accessible lane)

06CredentialCard

07On power lossFree swing

Standard: the gate opens on power loss for escape routes.

Your lanes

2 × mWing · 23-in lanes · 35-in glass · + 36-in wide lane (accessible)

Itemized quote the same business day · no prices online, no obligation.

Manufacturer warranty included — terms on your quote.

Coyote Traffic is trusted by

Logistics yards, military gates, theme parks, airports and apartment communities.

Your Bill of Materials/ 02

What's in your Bill of Materials.

Updates as you build. Your account manager itemizes every line on the quote.

012 × Magnetic mWing optical speed gate23-in lanes · 35-in glass · free swing on power loss
021 × mWing 36-in wide lane (accessible)Counted as your accessible lane
03mPost reader columns or integrated readersCard · one per lane
04Access-control interfaceCoordinated with your access-control integrator

10M
Passages
Design life across the line.
40/min
Speed gates
mWing and mFlow at peak.
2018
German Design Award
mTripod.
SameDay
Itemized quote
Same-business-day Bill of Materials from your account manager.

Magnetic turnstiles and speed gates are designed and built in Germany by Magnetic Autocontrol, a FAAC Group company. Coyote Traffic is an authorized partner.

Specifications/ 03

mWing specs.

Updates with the model you pick above.

Model: Magnetic mWing
Type: Optical speed gate with glass wings
Setting: Indoor / lobby
Lane width: 23 in standard / 36 in wide lane
Throughput: ~40 people/min
Power loss: Wings swing free
Feature 1: Opens in 0.6–1 s
Feature 2: Glass height 35 in or 71 in
Feature 3: Free swing on power loss
Feature 4: Escape-route approved
Power input: 100–240 VAC
Design life: 10 million passages
Access control: Works with common card readers and access-control systems; mPost reader column available
Safety standards: Built to EN 17352 safety standards (EN ISO 13849 PL d, CE)
Warranty: Manufacturer warranty included — terms on your quote

Compare/ 04

How it compares.

Specs from Magnetic. Your quote confirms the exact model, lanes and readers.

Swipe to see every column →

Model	Type	Indoor / outdoor	Throughput	Security level	Best for
mWingSelected	Optical speed gate with glass wings	Indoor	~40 people/min	Medium–high	Corporate lobbies and front desks
mFlow	Speed-gate passageway	Indoor	~40 people/min	Medium–high	Airport lounges, transit and high-volume lobbies
mTripod	Tripod turnstile	Indoor	~20 people/min	Medium	Lobbies, gyms, clubs and staff entrances
mSwingAccessible lane	Motorized swing gate	Indoor	39–47 in · double up to 94 in	Medium	Accessible lane beside tripods or speed gates

FAQ/ 05

Speed gate questions.

Didn't see yours? Ask Joseph — he specs these every day.

855-526-9683

It depends on the type, number of lanes, finish and readers. Tell us about the entrance and your account manager sends an itemized quote the same business day.

Need a lower-cost lobby option? See tripod turnstiles →

Coyote Traffic support specialist reviewing a custom traffic spike drawing at his laptop

Real people. Real expertise.

Talk to
someone who
actually knows.

Watch: The Expert Difference0:32More on our YouTube channel →

Questions? Talk to our team. Tell us where people enter, how busy it gets and what access system you run, and we'll spec the lanes, readers and accessible gate to match.
